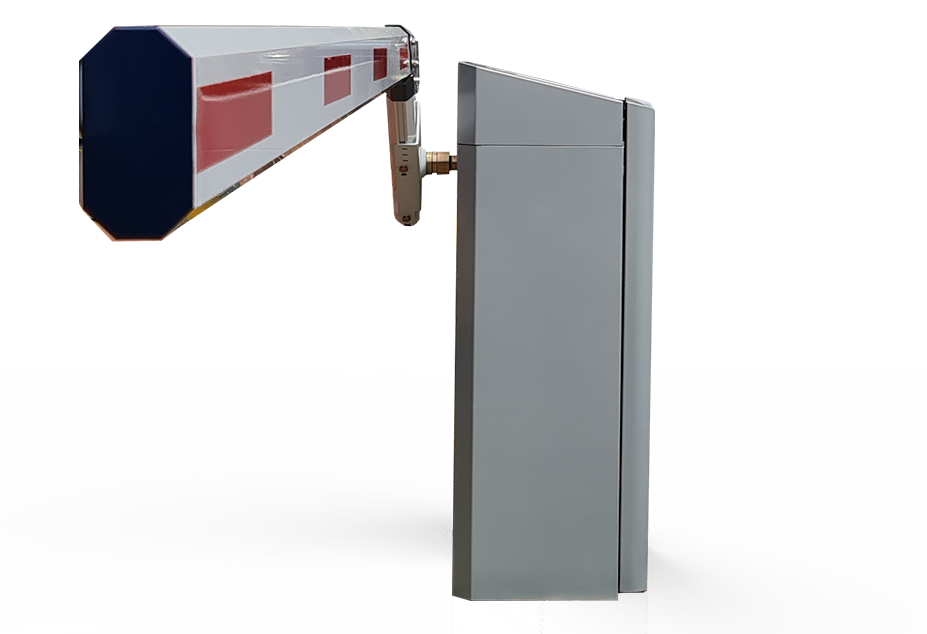

Smart Barrier Gate

Smart Barrier Gate

Boom Barrier DC Brushless Motor Automatic Boom Barrier Gate traffic barrier

 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure, high precision, high consistency, and standardization, and use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise, the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc., using the digital signal processor (DSP) As the control core, it can realize more complex algorithms, realize network and intelligence, (IPM) internal integrated drive circuit can detect faults and display fault codes to quickly solve fault problems. The three-bar linkage design of the machine core makes the rapid rise and stable fall. Using solar charging applications, it is suitable for unmanned occasions such as railway crossings, fire passages, oil stations, mine tunnels, etc., without electricity, and fully realizes automatic operation control.



FUNCTIONS 1. Open and close speed adjustable 2. Arm direction Left and Right can change easily 3. When power off, manual open and close arm, and lock itself. 4. Wireless remote 5. Photocell I0 port output 6. Loop detector anti-collision I0 output 7. Open and close control input 8. 12V traffic light output 9. Traffic light signal output 10. Open and close the limit signal output 11. Counting (fleet) input RS485 communication input 12. 24V battery input port 13. Delay close arm function(1-300 sec. Adjustable) 14. Open and close arm speed deceleration function 15. One-key setting arm type with corresponding speed 16. Arm auto-reverse function ( Force adjustable) 17. Anti-collision alarm function (additional sensors and alarms are required) 18.RS485 communication output



  • DESCRIPTION

Working Temperature

-35°C~+65°C

-35°C~+65°C

Power Supply

24/100/240VAC,50/60Hz

24/100/240VAC,50/60Hz

Open/close Speed

0.9Sec-8Sec(Adjustable)

0.6Sec-6Sec(Adjustable)

Rated Power

200W

400W

Driving Method

Servo motor

Servo motor

Humidity

≤90%

≤90%

Remote Control Distance

≤100m(open,sunny weather)

≤100m(open,sunny weather)

Protection Grade

IP54

IP54

Motor No - load Speed

3000r/min

3000r/min

Max Boom Length

3-6m

2.5m
